ECO-Skate® XN50LS

Price range: $7,860.00 through $17,585.00

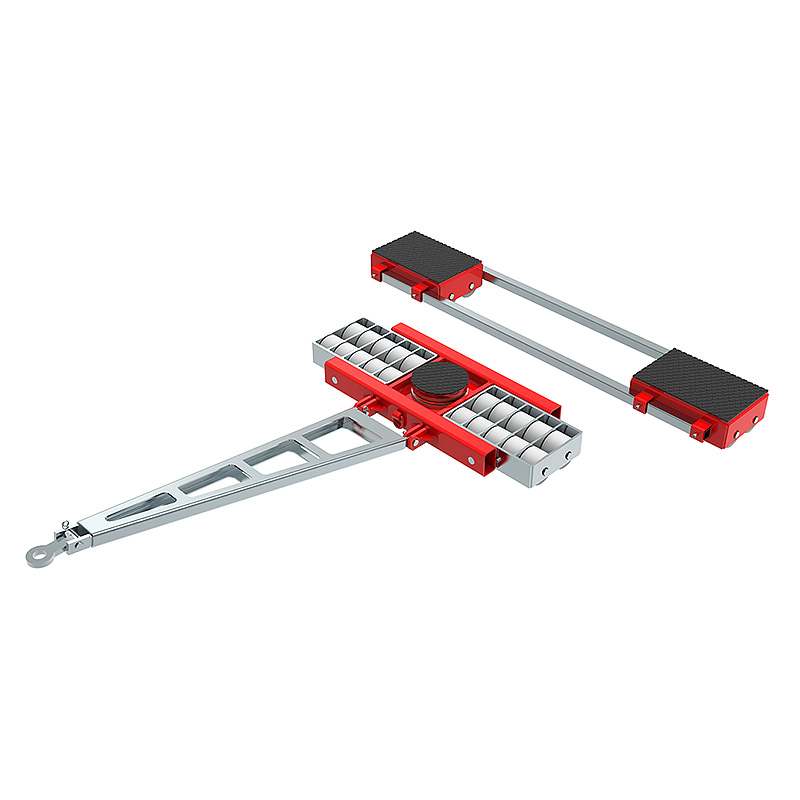

ECO-Skate® XN50LS ( 100 metric ton as set )

With the ECO-Skate® XN50LS load moving skates it is possible to move up to 100 metric tons. All shown trolleys are supplied with dual alignment bars and an A-Frame towing handle and are equipped with HTS nylon wheels. The nylon wheels are designed for smooth and even floors. They are manufactured of extruded nylon blocks; therefore, they are very high quality, very wear resistant and non-marking. The high load moving capacities come from the special design applied as well as the high-quality material not made from a tube which could bend easily.

HTS nylon wheels have a very little rolling resistance for easy handling of big weights. Pulling devices can also be smaller than with other wheels. All ECO-Skate® XL can be combined with each other, and the total capacity equals the sum of the single capacities.

Additional information

Weight N/A
Model Number

ECO-Skate® XN50LS, ECO-Skate® XN50L, ECO-Skate®XN50S

Product Features


  • Moves up to 100 metric tons.
  • All trolleys supplied with dual alignment bars and an A-frame steering handle.
  • Manufactured of extruded nylon blocks, therefore they are very high quality, very wear resistant and non-marking.
  • All Eco-Skate® XN can be combined with each other, and the total capacity equals the sum of the single capacities.

Product Specs

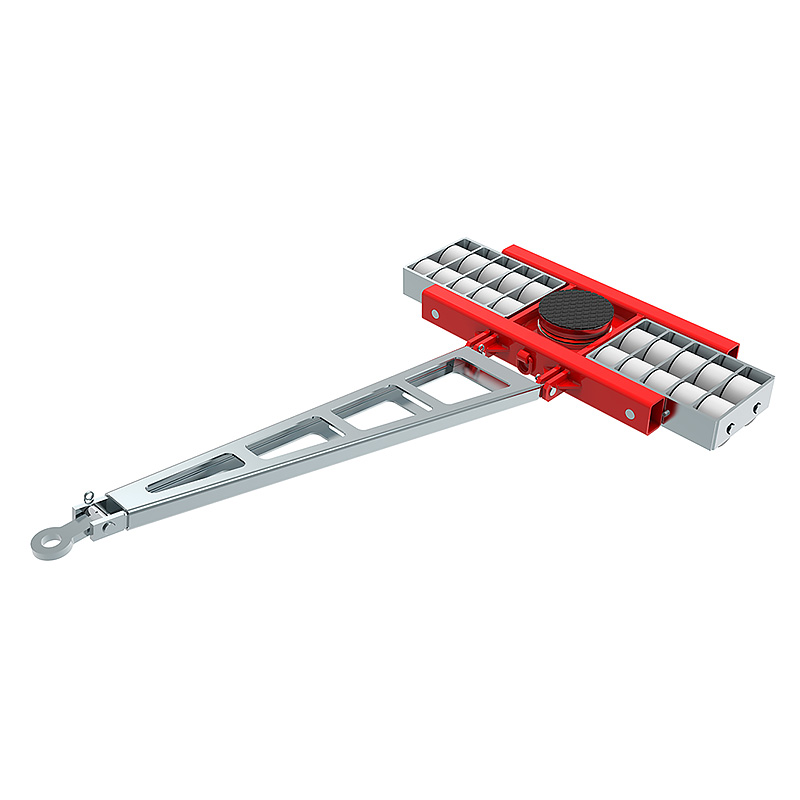

ECO-Skate® XN50L

  • Part Number: ​​10.500.03.10
  • Capacity: 110,200 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 20 Nylon
  • Load Area: Ø8.7”
  • Load Height: 7.1”
  • Dimensions L x W x H: 23.9” x 52.6” x 7.1”
  • A-Frame Handle Length63.8”
  • Weight: 472 lbs.

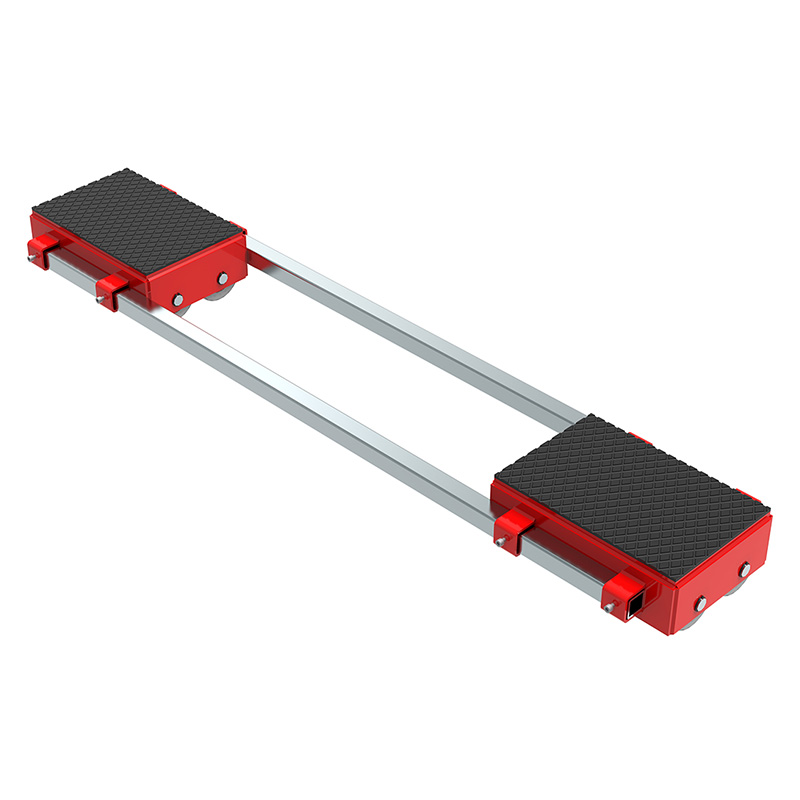

ECO-Skate® XN50S

  • Part Number: 10.500.03.20
  • Capacity: 2 X 55,000 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 2 X 10 Nylon
  • Load Area: 12.5” X 18.9”
  • Load Height: 7.1”
  • Dimensions L x W x H: 17.9” x 19.9” x 7.1”
  • Adjustability: 21.6” X 65”
  • Weight:  383 lbs.

Capacity as a set: 220,400 lbs.
