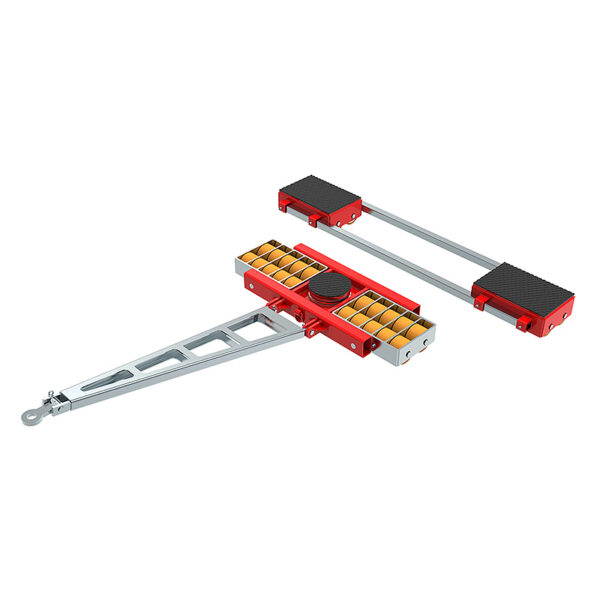

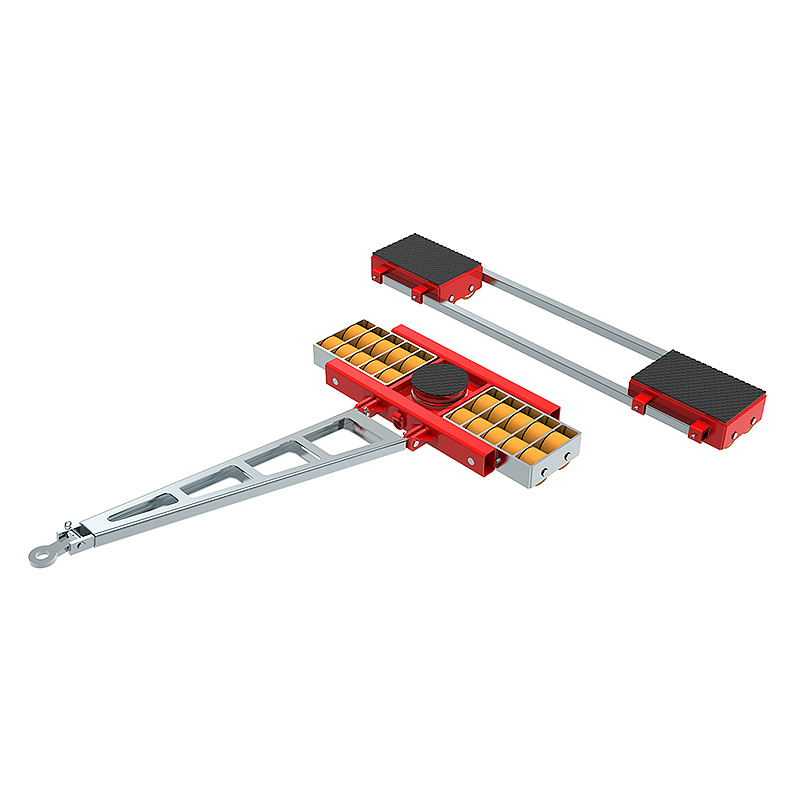

ECO-Skate® X40LS

Price range: $6,515.00 through $14,890.00

ECO-Skate® X40LS ( 80 metric ton as set )

With the ECO-Skate® X40LS load moving skates it is possible to move up to 80 metric tons. All shown trolleys are supplied with dual alignment bars and an A-Frame towing handle and are equipped with HTS nylon wheels. The nylon wheels are designed for smooth and even floors. They are manufactured of extruded polyurethane blocks; therefore, they are very high quality, very wear resistant and non-marking. The high load moving capacities come from the special design applied as well as the high-quality material not made from a tube which could bend easily.

Also, the ECO-Skate® XL can be combined with any of the different capacities within the range. The total capacity equals the sum of the single capacities of each ECO-Skate® XL.



SKU: N/A Categories: , ,

Additional information

Weight N/A
Model Number

ECO-Skate® X40LS, ECO-Skate® X40L, ECO-Skate® X40S

Product Features

  • Carries up to 80 metric tons.
  • Can be combined with any of the different capacities within the range.
  • The axles and bearings are supported and enclosed within the frame.

Product Specs

View Product Specs PDF

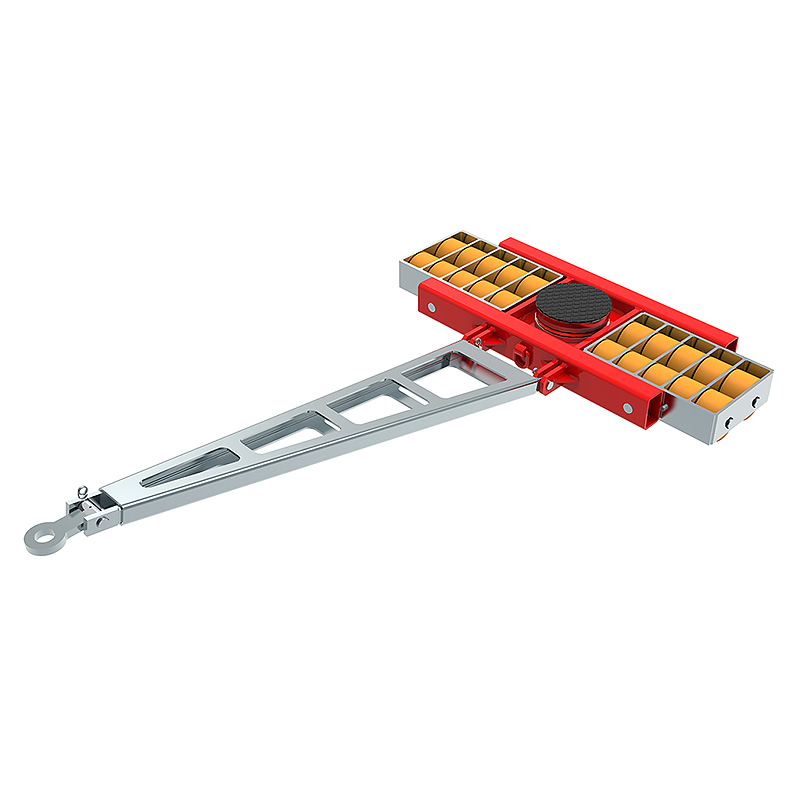

ECO-Skate® X40L

  • Part Number: ​​10.400.02.10
  • Capacity: 88,100 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 29 Polyurethane
  • Load Area: Ø9.8”
  • Load Height: 7.1”
  • Dimensions L x W x H: 23.9” x 52.6” x 7.1”
  • A-Frame Handle Length: 63.8”
  • Weight: 506 lbs.

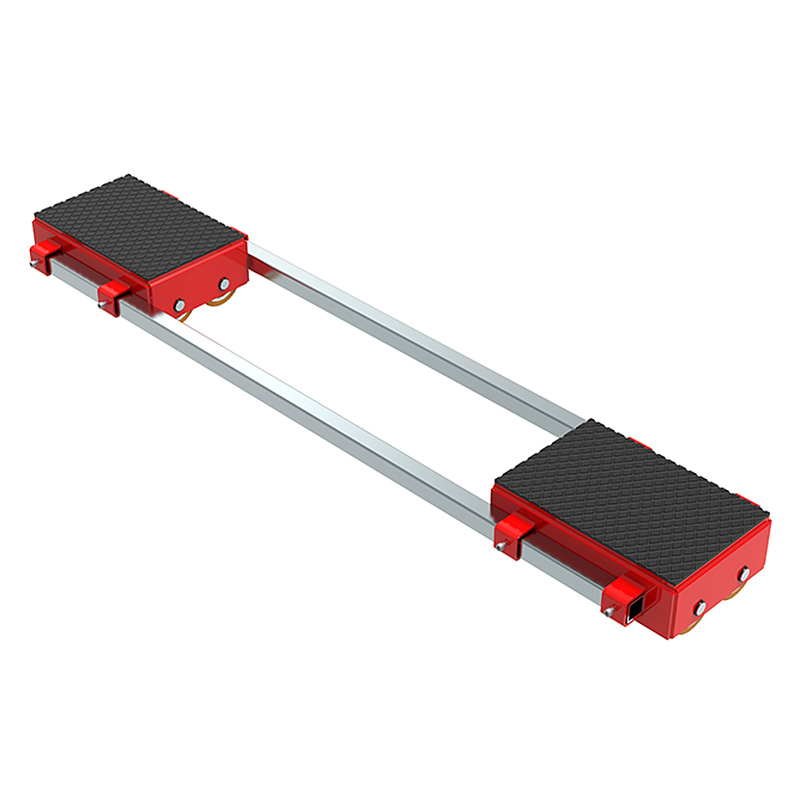

 ECO-Skate® X40S

  • Part Number: 10.400.02.20
  • Capacity:  2 X 44,100 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 2 X 10 Polyurethane
  • Load Area: 12.5” X 18.9”
  • Load Height: 7.1”
  • Dimensions L x W x H: 17.9” x 19.9” x 7.1”
  • Adjustability: 21.6” X 65”
  • Weight:  422 lbs.

Capacity as a set: 176,300 lbs.
