ECO-Skate® X24LS

Price range: $3,930.00 through $9,725.00

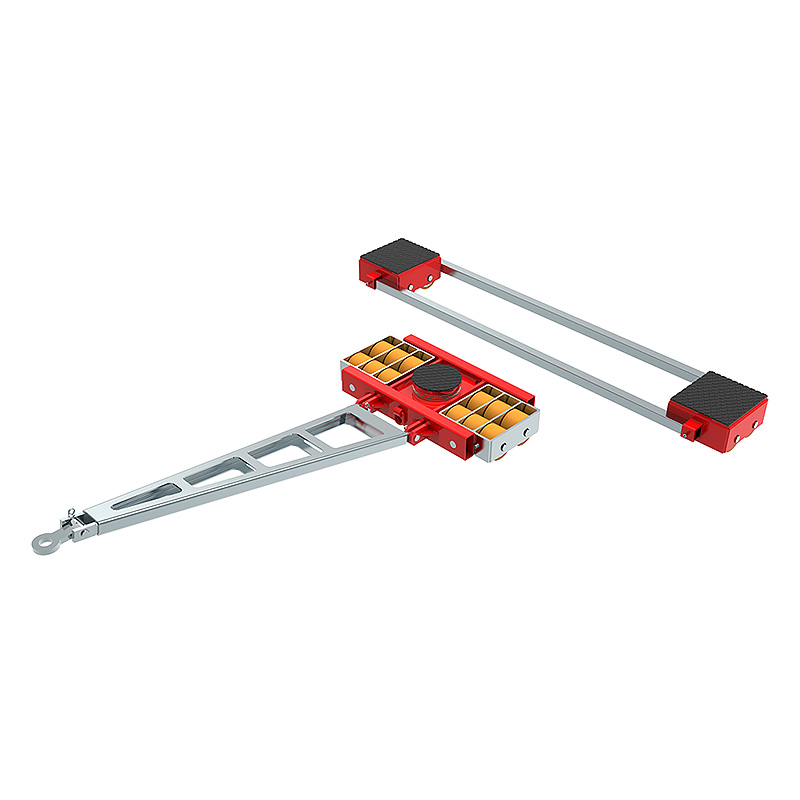

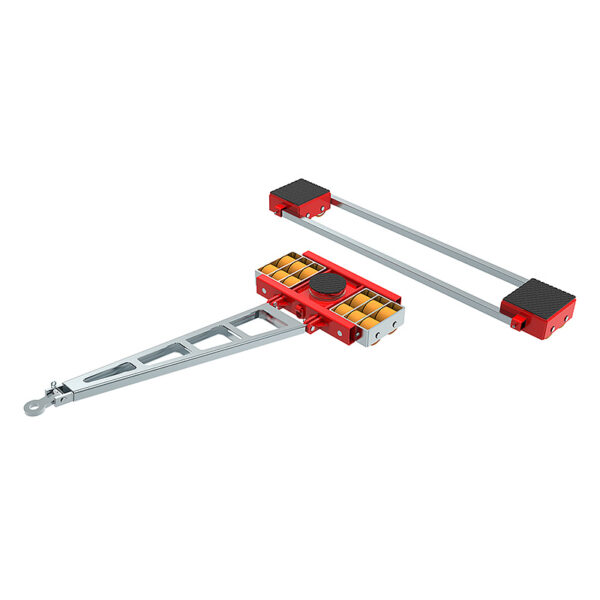

ECO-Skate® X24LS ( 48 metric ton as set )

With the ECO-Skate® X24LS load moving skates it is possible to move up to 48 metric tons. All shown trolleys are supplied with dual alignment bars and an A-Frame towing handle and are equipped with HTS nylon wheels. The nylon wheels are designed for smooth and even floors. They are manufactured of extruded polyurethane blocks; therefore, they are very high quality, very wear resistant and non-marking. The high load moving capacities come from the special design applied as well as the high-quality material not made from a tube which could bend easily.

Also, the ECO-Skate® XL can be combined with any of the different capacities within the range. The total capacity equals the sum of the single capacities of each ECO-Skate® XL .



SKU: N/A Categories: , ,

Additional information

Weight N/A
Model Number

ECO-Skate® X24LS, ECO-Skate® X24L, ECO-Skate® X24S

Product Features

  • Carries up to 48 metric tons.
  • Can be combined with any of the different capacities within the range.
  • The axles and bearings are supported and enclosed within the frame.

Product Specs

View Product Specs PDF

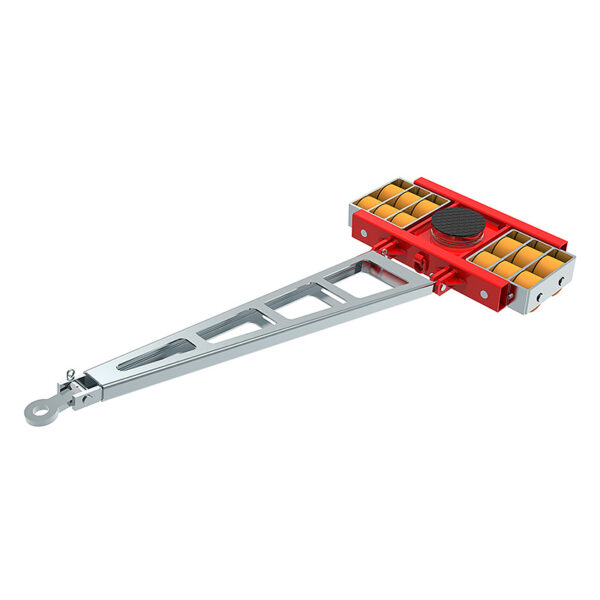

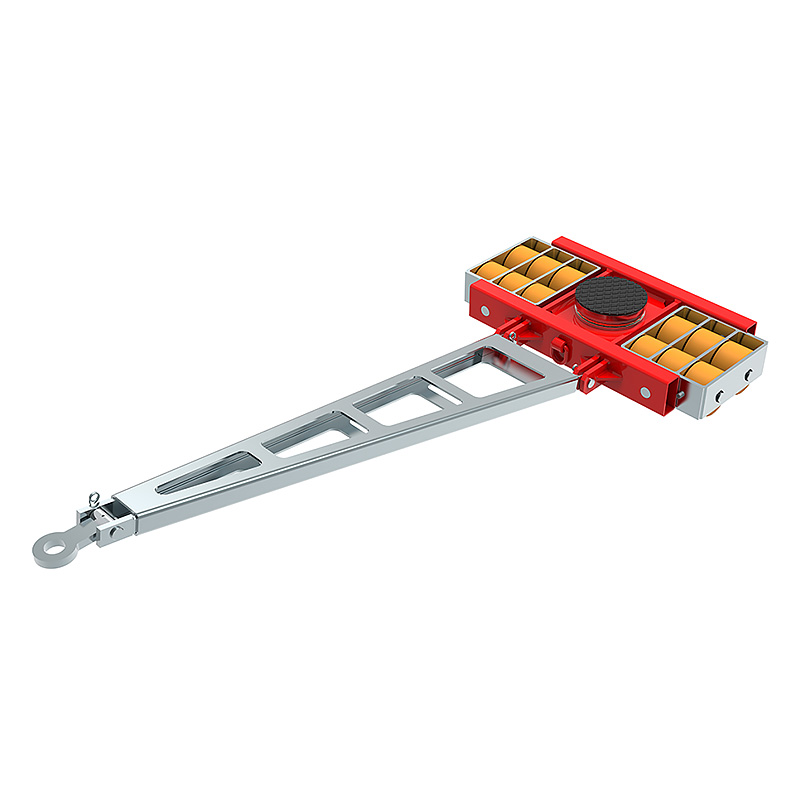

ECO-Skate® X24L

  • Part Number: ​​10.240.02.10
  • Capacity: 52,800 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 12 Polyurethane
  • Load Area: Ø8.7”
  • Load Height: 7.1”
  • Dimensions L x W x H: 22.4” x 36.7” x 7.1”
  • A-Frame Handle Length: 63.8”
  • Weight: 354.2 lbs.

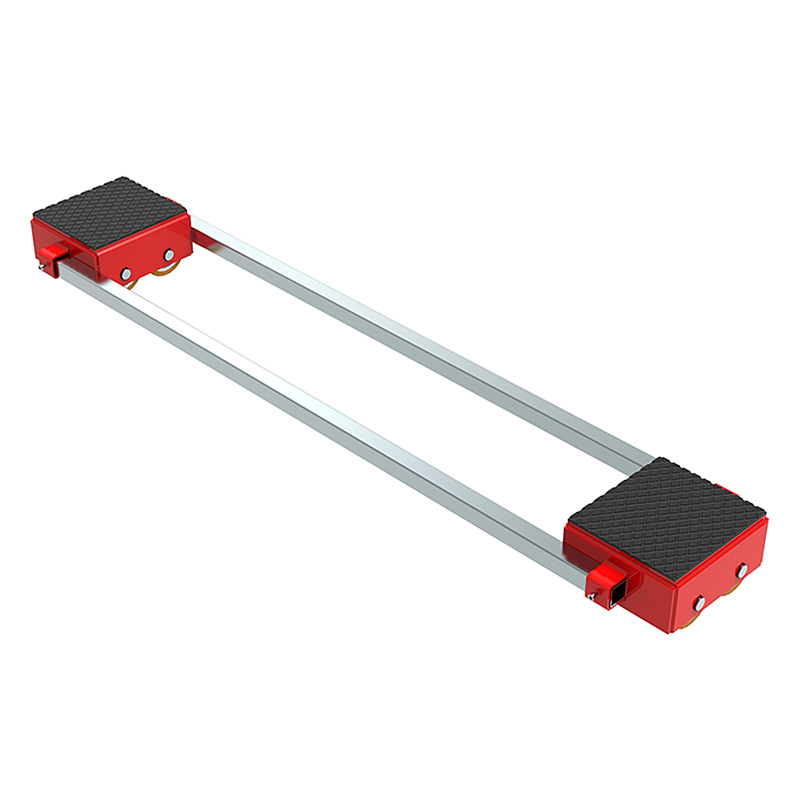

 ECO-Skate® X24S

  • Part Number: 10.240.02.20
  • Capacity:  2 X 26,400 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 2 X 6 Polyurethane
  • Load Area: 12.5” X 11.2”
  • Load Height: 7.1”
  • Dimensions L x W x H: 17.9” x 12.3” x 7.1”
  • Adjustability: 12.6” X 76.4”
  • Weight:  273.2 lbs.

Capacity as a set: 105,600 lbs.
