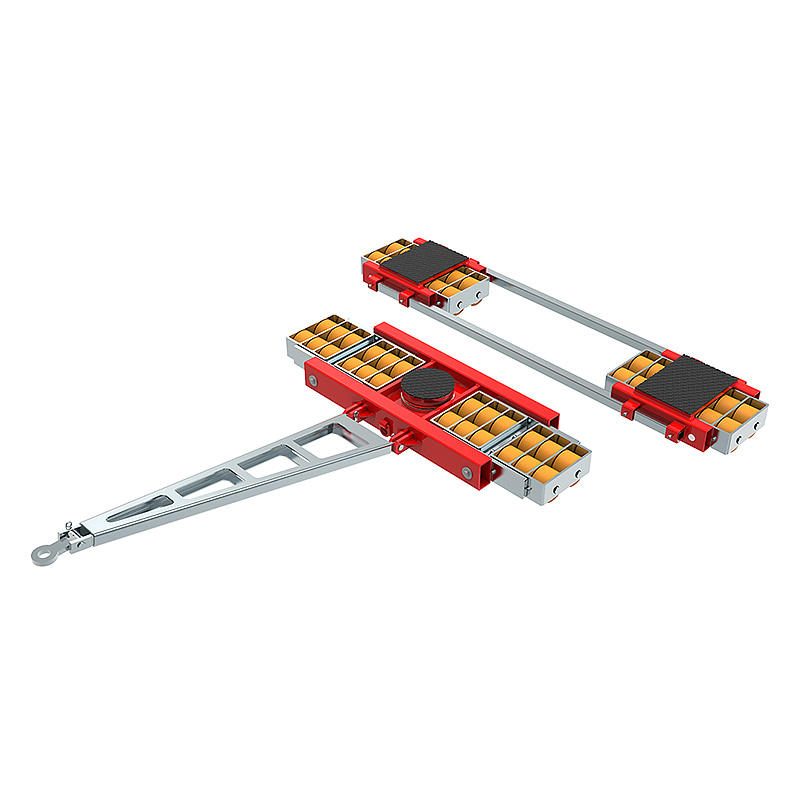

ECO-Skate® X48LS

Price range: $7,860.00 through $19,240.00

ECO-Skate® X48LS ( 96 metric ton as set )

With the ECO-Skate® X48LS load moving skates it is possible to move up to 96 metric tons. All shown trolleys are supplied with dual alignment bars and an A-Frame towing handle and are equipped with HTS nylon wheels. The nylon wheels are designed for smooth and even floors. They are manufactured of extruded polyurethane blocks; therefore, they are very high quality, very wear resistant and non-marking. The high load moving capacities come from the special design applied as well as the high-quality material not made from a tube which could bend easily.

Also, the ECO-Skate® XL can be combined with any of the different capacities within the range. The total capacity equals the sum of the single capacities of each ECO-Skate® XL.

SKU: N/A Categories: , ,

Additional information

Weight N/A
Model Number

ECO-Skate® X48LS, ECO-Skate® X48L, ECO-Skate® X48S

Product Features

  • Carries up to 96 metric tons.
  • Can be combined with any of the different capacities within the range.
  • The axles and bearings are supported and enclosed within the frame.

Product Specs

View Product Specs PDF

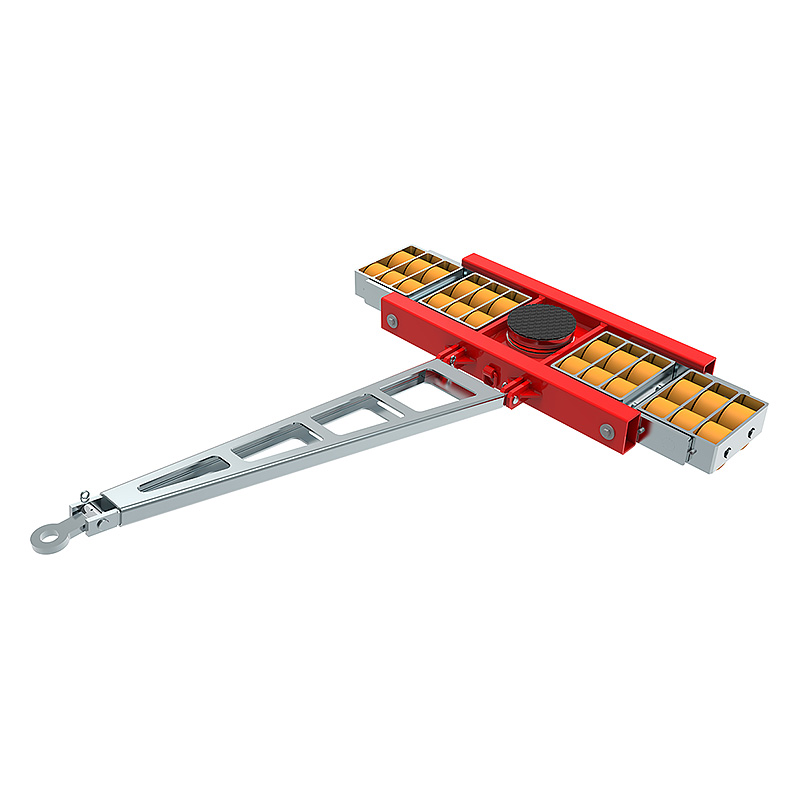

ECO-Skate® X48L

  • Part Number: ​​10.480.02.10
  • Capacity: 105,600 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 24 Polyurethane
  • Load Area: Ø9.8”
  • Load Height: 7.1”
  • Dimensions L x W x H: 26” x 65.5” x 7.1”
  • A-Frame Handle Length: 63.8”
  • Weight: 702 lbs.

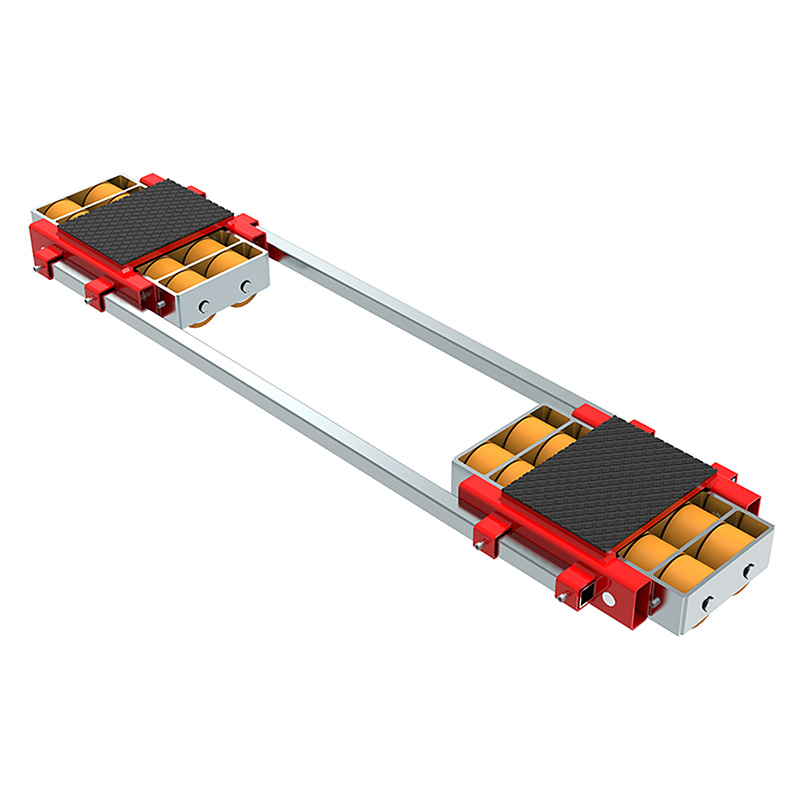

 ECO-Skate® X48S

  • Part Number: 10.480.02.20
  • Capacity: 2 X 52,800 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 2 X 12 Polyurethane
  • Load Area: 15.7” X 11.8”
  • Load Height: 7.1”
  • Dimensions L x W x H: 22.8” x 27.2” x 7.1”
  • Adjustability: 27.5” X 65.5”
  • Weight:  581 lbs.

Capacity as a set: 211,200 lbs.
