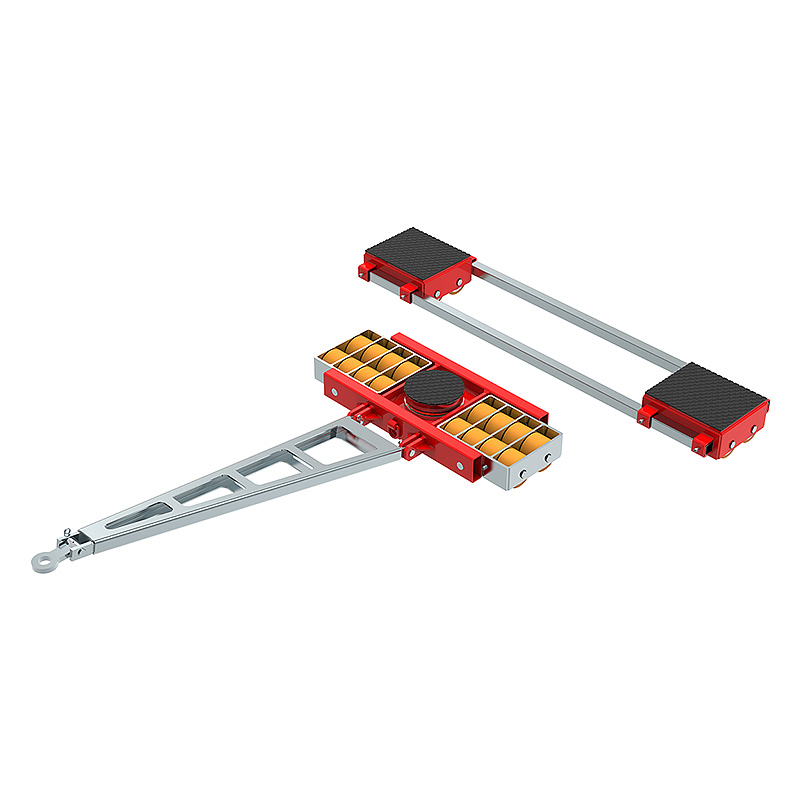

ECO-Skate® X32LS

Price range: $4,965.00 through $12,100.00

ECO-Skate® X32LS ( 64 metric ton as set )

With the ECO-Skate® X32LS load moving skates it is possible to move up to 64 metric tons. All shown trolleys are supplied with dual alignment bars and an A-Frame towing handle and are equipped with HTS nylon wheels. The nylon wheels are designed for smooth and even floors. They are manufactured of extruded polyurethane blocks; therefore, they are very high quality, very wear resistant and non-marking. The high load moving capacities come from the special design applied as well as the high-quality material not made from a tube which could bend easily.

Also, the ECO-Skate® XL can be combined with any of the different capacities within the range. The total capacity equals the sum of the single capacities of each ECO-Skate® XL.



Additional information

Weight N/A
Model Number

ECO-Skate® X32LS, ECO-Skate® X32L, ECO-Skate®X32S

Reviews

There are no reviews yet.

Be the first to review “ECO-Skate® X32LS”

Your email address will not be published. Required fields are marked *

Product Features


  • Carries up to 64 metric tons.
  • Can be combined with any of the different capacities within the range.
  • The axles and bearings are supported and enclosed within the frame.

Product Specs

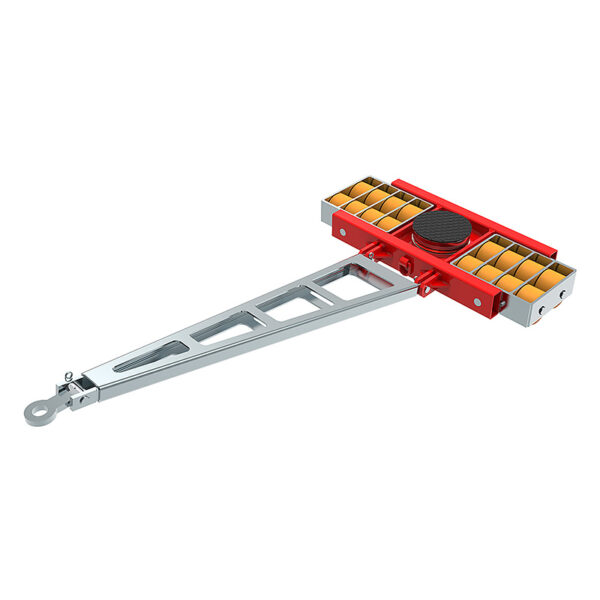

ECO-Skate® X32L

  • Part Number: ​​10.320.02.10
  • Capacity: 64,800 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 16 Polyurethane
  • Load Area: Ø8.7”
  • Load Height: 7.1”
  • Dimensions L x W x H: 22.4” x 44.8” x 7.1”
  • A-Frame Handle Length63.8”
  • Weight: 426.8 lbs.

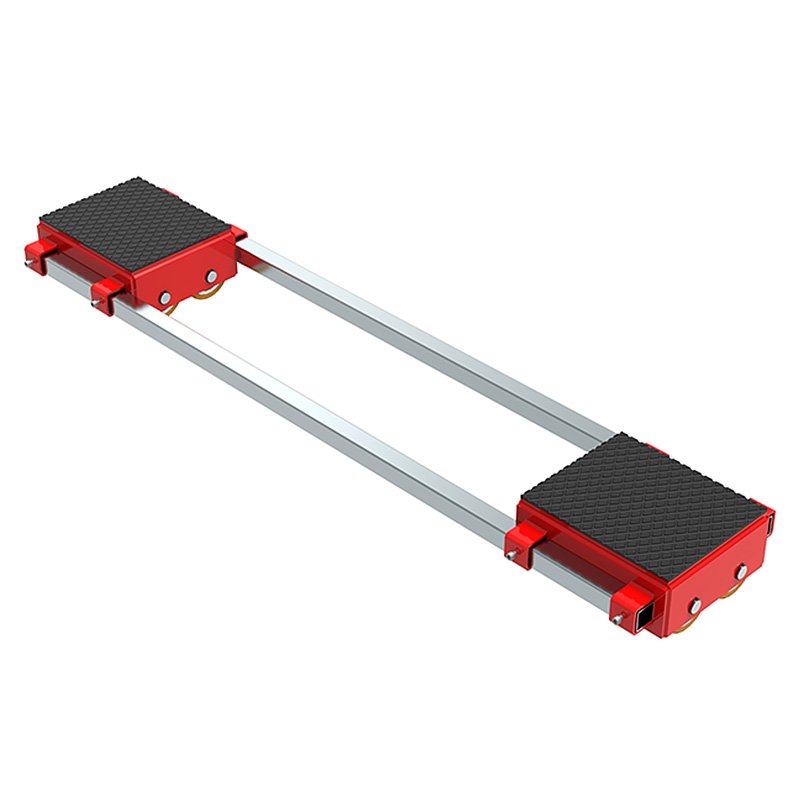

ECO-Skate® X32S

  • Part Number: 10.320.02.20
  • Capacity:  2 X 35,200 lbs.
  • Wheel Size: 5.5” X 3.3”
  • Number of Wheels: 2 X 8 Polyurethane
  • Load Area: 12.5” X 15”
  • Load Height: 7.1”
  • Dimensions L x W x H: 17.9” x 16.1” x 7.1”
  • Adjustability: 16.5” X 65.4””
  • Weight:  345.4 lbs.

Capacity as a set: 140,800 lbs.
