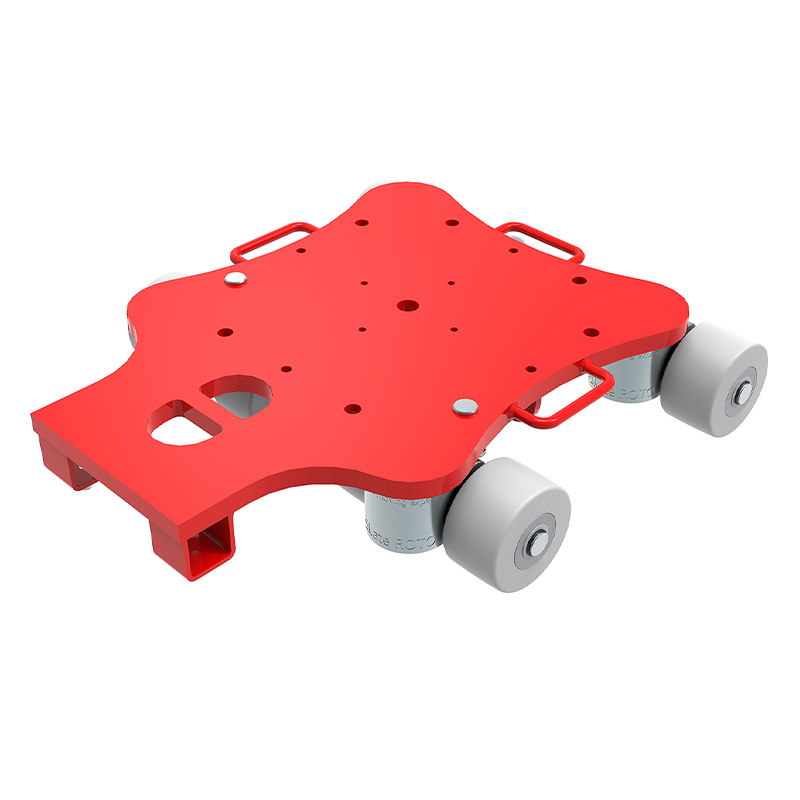

ECO-Skate® ROTOflex RFXN12-G

$5,790.00

The new ECO-Skate® RFXN12 ROTO 360° load moving skates impress in all series with the new narrow HTS nylon wheels and their ease when changing direction. The additional improved maneuverability is brought about by the optimized arrangement of the rollers on the frame of the system. The ratio of wheel to rotation axis is designed so that the steering operation can be done with significantly reduced horizontal forces.

The new ECO-Skate® RFXN12 360° skates can be converted into multifunction skate systems by combining, for example, alignment bars, steering bars, and mountable turntables as well as locking pins. It can be used both as a classic rotational skate system with 360 ° rotation or for those long runs,  a semi-directional skate by pinning the rear wheels. It’s like having 2 skates in1.

Categories: , ,
Shipping Class: LTL Freight

Additional information

Weight 264 lbs

Reviews

There are no reviews yet.

Be the first to review “ECO-Skate® ROTOflex RFXN12-G”

Your email address will not be published. Required fields are marked *

Product Features


  • Narrow wheels
  • The ratio of wheel to rotation axis is designed so that the steering operation can be done with significantly reduced horizontal forces.
  • Can be converted into multifunction skate systems.
  • Can be used as a classic rotational skate system with 360° rotation as well as fixed rear skates, steerable front units or EZ-GO skates.
  • All skates available without rubber pad.

Product Specs


ROTOflex XL RFXN12-G (without Rubber Pad)

  • Part Number: ​​10.120.03.40
  • Dimensions L x W x H:  32.7” x 28” x 7.1”
ROTOflex XL RFXN12

  • Part Number: ​​​​10.120.03.41
  • Capacity: 26,400 lbs.
  • Wheel Size: 5.5” x 3.3”
  • Number of Wheels: 8 Nylon
  • Load Area: 8.6”
  • Load Height: 7.1”
  • Dimensions L x W x H:  32.7” x 28” x 7.1”
  • Weight: 264 lbs.
