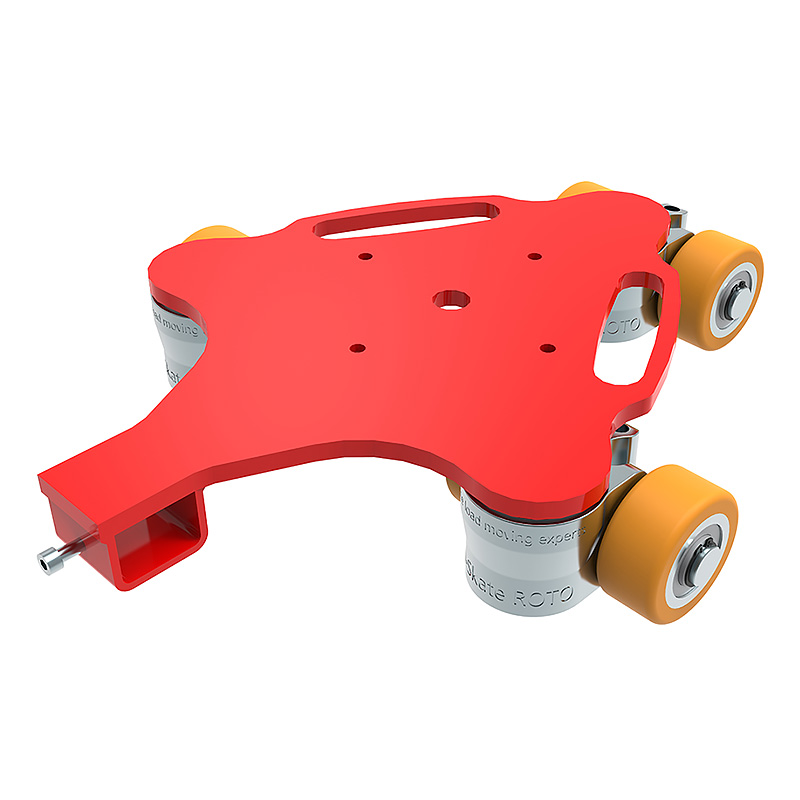

ECO-Skate® ROTOflex RF14-G

$1,235.00

ECO-Skate® ROTOflex RFX14 (1.4 metric tons)

The new ECO-Skate® RF14 ROTO 360° load moving skates impress in all series with the new narrow HTS nylon wheels and their ease when changing direction. The additional improved maneuverability is brought about by the optimized arrangement of the rollers on the frame of the system. The ratio of wheel to rotation axis is designed so that the steering operation can be done with significantly reduced horizontal forces.

The new ECO-Skate® RF14 360° skates can be converted into multifunction skate systems by combining, for example, alignment bars, steering bars, and mountable turntables as well as locking pins. It can be used both as a classic rotational skate system with 360 ° rotation or for those long runs,  a semi-directional skate by pinning the rear wheels. It’s like having 2 skates in1.



Categories: ,
Shipping Class: LTL Freight

Additional information

Weight 53 lbs

Reviews

There are no reviews yet.

Be the first to review “ECO-Skate® ROTOflex RF14-G”

Your email address will not be published. Required fields are marked *

Product Features


  • Narrow wheels.
  • The ratio of wheel to rotation axis is designed so that the steering operation can be done with significantly reduced horizontal forces.
  • Can be converted into multifunction skate systems.
  • Can be used as a classic rotational skate system with 360° rotation or a semi-directional skate, by pinning the rear wheels
  • All skates available without rubber pad.

Product Specs


ECO-Skate® ROTOflex RF14-G (without Rubber Pad)

  • Part Number: ​​10.014.04.40
  • Dimensions L x W x H:  21.7” x 18.4” x 4”
ECO-Skate® ROTOflex RF14 (1.4 metric tons)

  • Part Number: ​​​​10.014.04.41
  • Capacity:  3,080 lbs.
  • Wheel Size: 3.3” x 1.7”
  • Number of Wheels:  4 Polyurethane
  • Load Area: 5.9”
  • Load Height: 4.3”
  • Dimensions L x W x H: 21.7” x 18.4” x 4.3”
  • Weight:  53 lbs.
