ECO-Skate® BIG88LS

Price range: $12,415.00 through $28,965.00

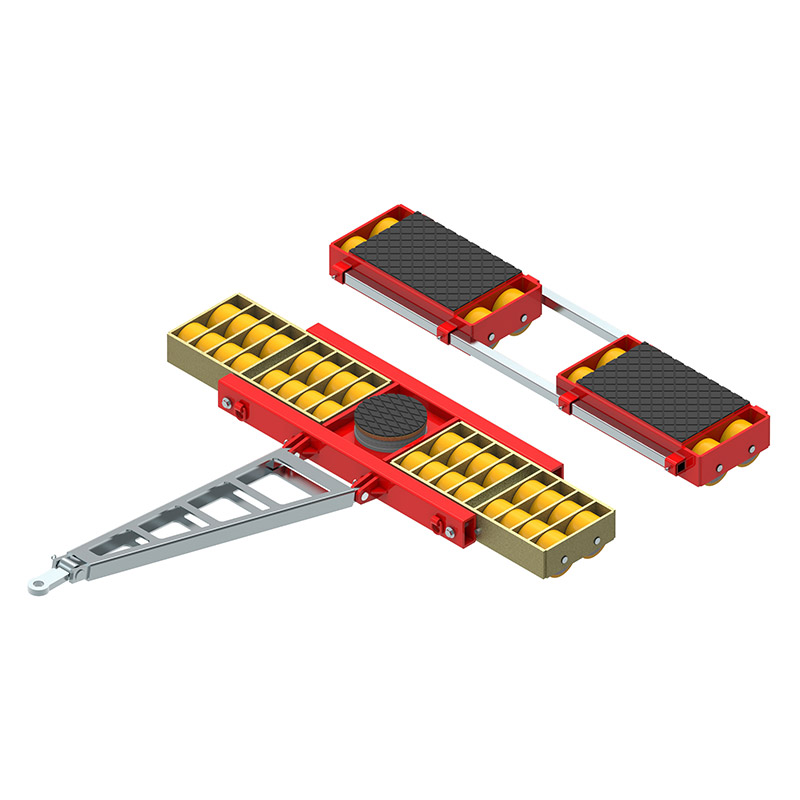

ECO-Skate® BIG88LS ( 176 metric ton as set )

The ECO-Skate® BIG88LS is a robust load moving skate 3-point set designed for heavy industrial use with a total capacity of 388,000 lbs. The BIG88L is capable of handling loads up to 194,000 pounds with its 32 polyurethane wheels. This model is part of the ECO-Skate® BIG series, which is known for its durability and versatility in various industrial settings. The BIG88LS 3-point set, like other models in the series, features polyurethane wheels that are non-marking and suitable for a variety of floor types. The design includes a compact frame that houses the axles and bearings, ensuring that they are protected even under extreme loads. This makes the BIG88LS an ideal choice for transporting large machinery or equipment within production lines or during machine installation processes.



Additional information

Weight N/A
Model Number

ECO-Skate® BIG88LS, ECO-Skate® BIG88L, ECO-Skate® BIG88S

Reviews

There are no reviews yet.

Be the first to review “ECO-Skate® BIG88LS”

Your email address will not be published. Required fields are marked *

Product Features


  • Compact
  • Load Moving Skates with high load capacities

Product Specs

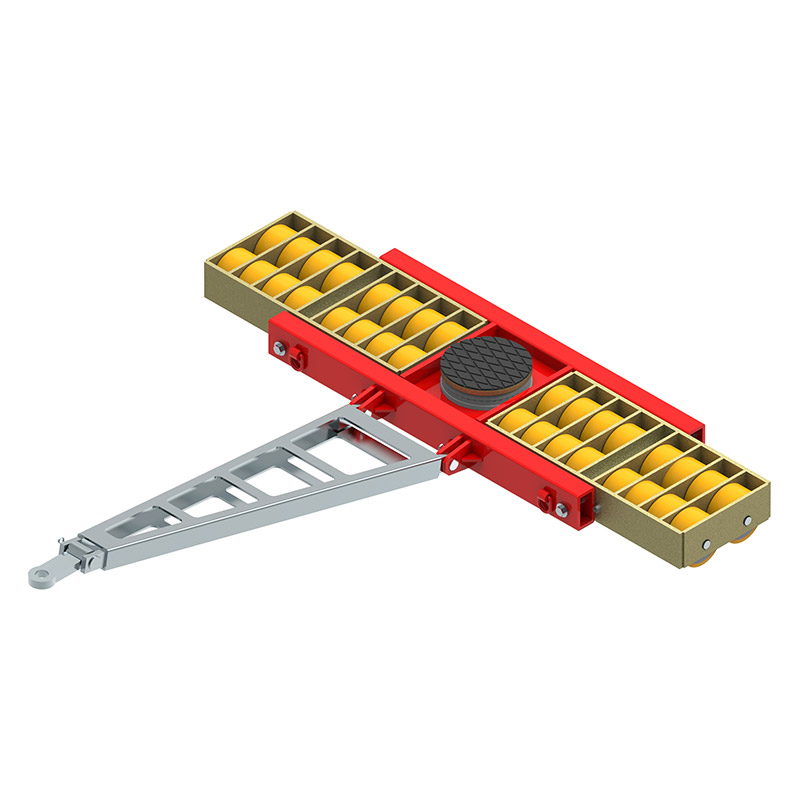

ECO-Skate® BIG88L

  • Part Number: ​​09.088.04.10
  • Capacity:  194,000 lbs.
  • Wheel Size:  7” X 3.5”
  • Number of Wheels:  32 Polyurethane
  • Load Area:  Ø11.8”
  • Load Height: 8.7”
  • Dimensions L x W x H:  29.1” x 87.2” x 8.7”
  • A-Frame Handle Length: 70”
  • Weight:  1,287 lbs.

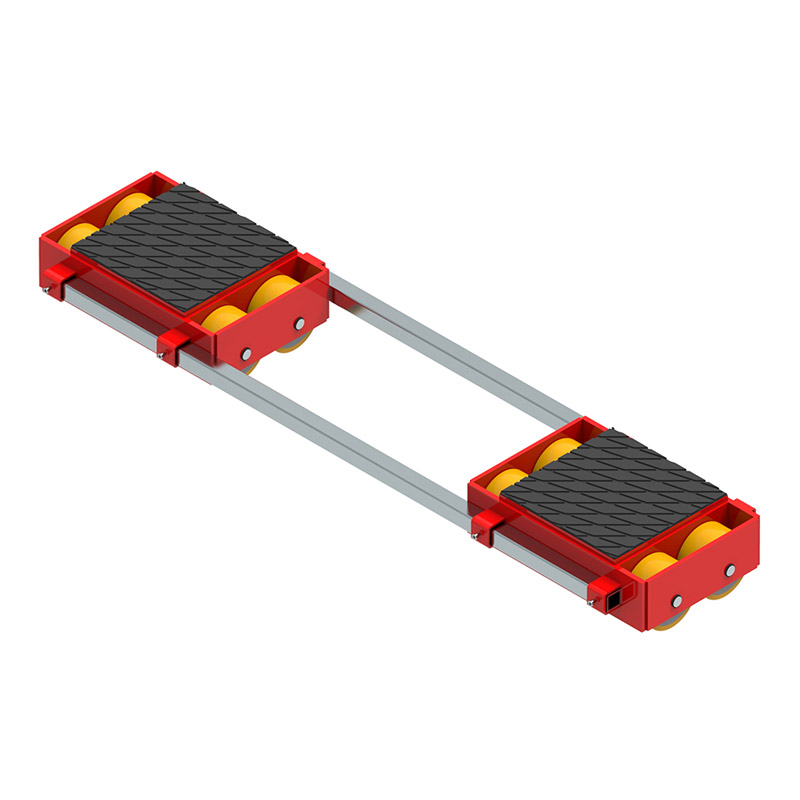

ECO-Skate® BIG88S

  • Part Number: 09.88.04.20
  • Capacity:  2 X 97,000 lbs.
  • Wheel Size:  7” X 3.5”
  • Number of Wheels:  2 x 24 Polyurethane
  • Load Area:  23.3” X 24”
  • Load Height: 8.7”
  • Dimensions L x W x H:  28.8” x 33.4” x 8.7”
  • Adjustability: 35.4” X 52”
  • Weight:  1,286 lbs.

Capacity as a set: 388,000 lbs.
