ECO-Skate® BIG44LS

Price range: $5,995.00 through $14,065.00

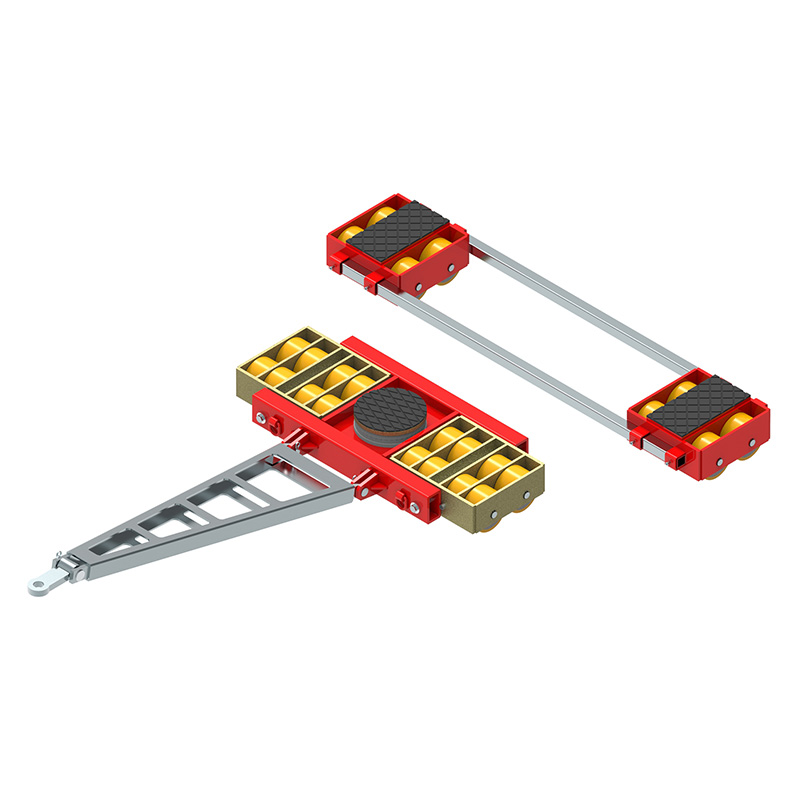

ECO-Skate® BIG44LS ( 88 metric ton as set )

The ECO-Skate® BIG44LS represents a significant advancement in the field of heavy-duty load moving systems. With a remarkably low profile of just 220 mm/7.1”, these skates are engineered to handle immense weights, up to 88 metric tons/ 194,000 lbs. while maintaining a compact and robust design. The incorporation of HTS polyurethane wheels, each individually supported, ensures that the load is distributed evenly, reducing the risk of wheel deformation under temporary overloads and compensating for any irregularities in floor surfaces. This feature not only enhances the durability and longevity of the skates but also provides a level of versatility that allows for various models within the ECO-Skate® BIG series to be combined, effectively increasing their load-moving capacity. Such a combination of strength, reliability, and flexibility makes the ECO-Skate® BIG an indispensable tool for industries requiring the safe and efficient transport of heavy machinery or goods.



Additional information

Weight N/A
Model Number

ECO-Skate® BIG44LS, ECO-Skate® BIG44L, ECO-Skate® BIG44S

Reviews

There are no reviews yet.

Be the first to review “ECO-Skate® BIG44LS”

Your email address will not be published. Required fields are marked *

Product Features


  • Compact
  • Load Moving Skates with high load capacities

Product Specs

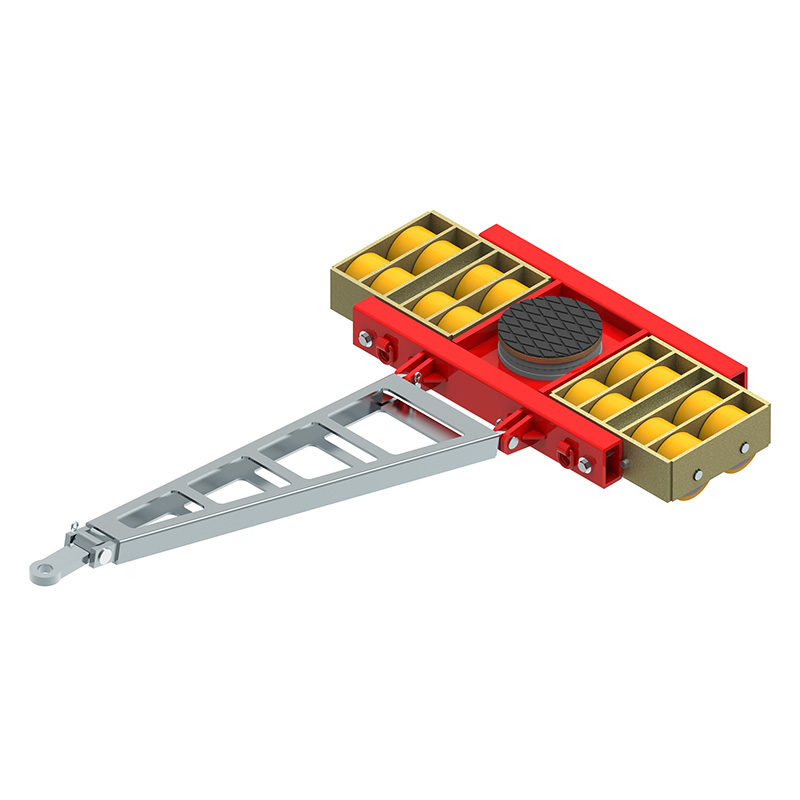

ECO-Skate® BIG44L

  • Part Number: 09.044.04.10
  • Capacity:  97,000 lbs.
  • Wheel Size:  7” X 3.5”
  • Number of Wheels:  16 Polyurethane
  • Load Area:  Ø11.8”
  • Load Height: 8.7”
  • Dimensions L x W x H:  29.1” x 54.7” x 8.7”
  • A-Frame Handle Length: 70”
  • Weight:  864 lbs.

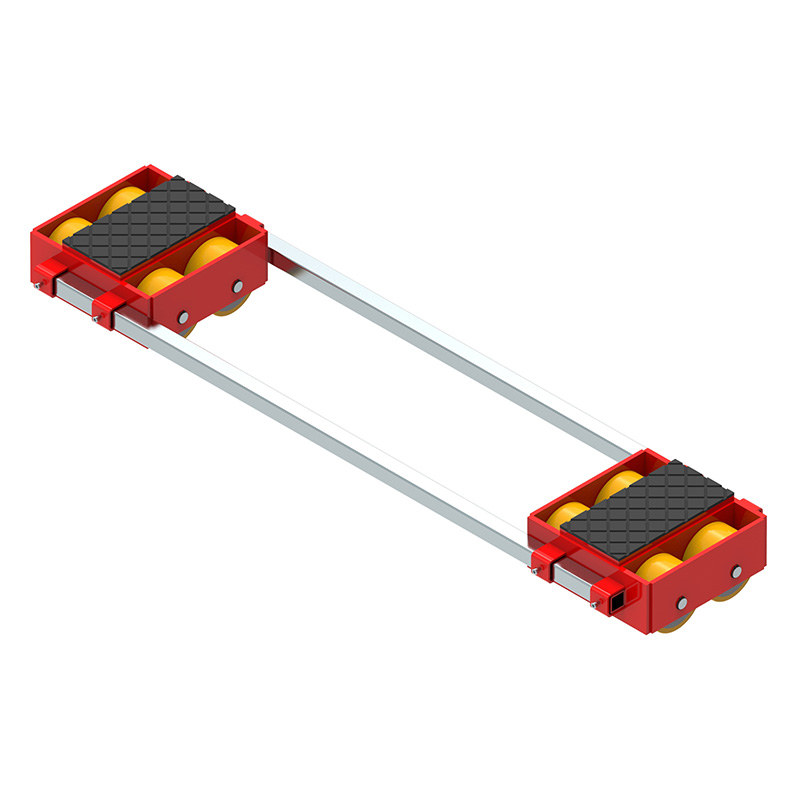

ECO-Skate® BIG44S

  • Part Number: 09.044.04.20
  • Capacity:  2 X 48,500 lbs.
  • Wheel Size:  7” X 3.5”
  • Number of Wheels:  2 x 8 Polyurethane
  • Load Area:  15.8” X 8”
  • Load Height: 8.7”
  • Dimensions L x W x H:  21.3” x 17.2” x 8.7”
  • Adjustability: 17.7” X 68.3”
  • Weight:  484 lbs.

Capacity as a set: 194,000 lbs.
